Power Ratings: 22kW Standby / 19kW Prime

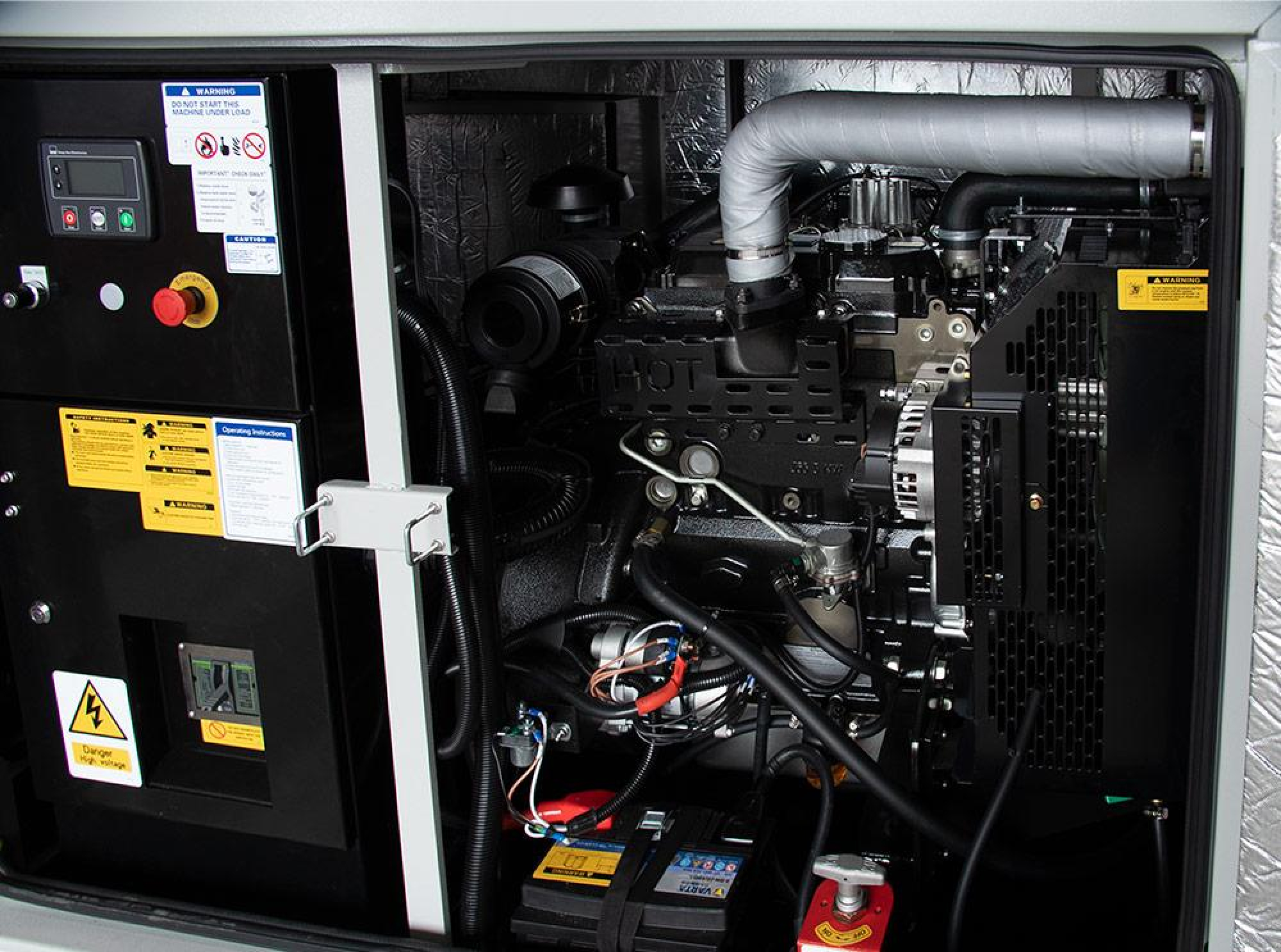

Engine: Perkins 403D, Turbocharged, heavy duty diesel engine, 4 stroke, 1800rpm, Liquid cooled, Electronic governed
Alternator: Leroy Somers, 12 Lead brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation, UL1446 LISTED (3 Ph 208V, 240V, 480V & 600V)

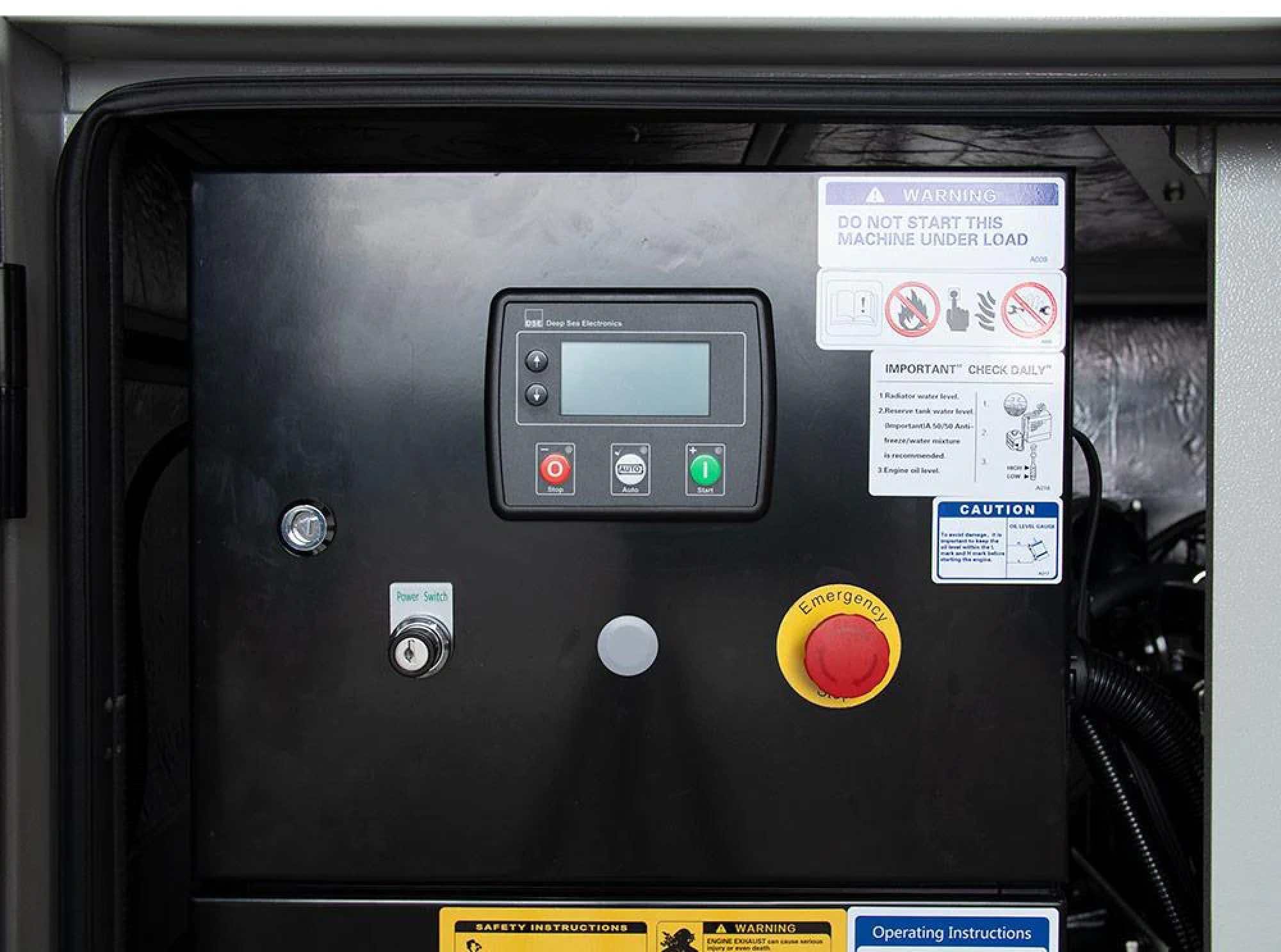

Controls: Deep Sea DSE4520, ADVANCED Digital auto-start/stop control panel. All genset parameter, alarms and control functions.
Battery Charger: DSE9470 10A 12V MKII is an intelligent switch-mode battery charger that can be programmed for different charging curves which helps maximize battery life. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
Battery: Varta 60Ah 580 CCA maintenance free battery
Jacket Water Heater: Hotstart TPS202GT10-008 2kw coolant heater designed to maintain optimal coolant temperature to make sure your generators start on time – every time.
Fuel Tank: Integral 145L (38 Gal) diesel fuel tank complete with fuel level sender
Emissions Compliancy: Canada Stationary
Engine Warranty: Standby: 3 Years - 1500 hours (500 hours per year)
Prime: 1 Year - Unlimited Hours
Generator Package Warranty: 1 Year - 1000 hours
Quality: Designed and built to ISO9001 & CSA Standards.
